This case study focuses on the quality control process for an aluminum die-cast oil pipe, specifically pressure and leak testing to ensure structural integrity and sealing performance. The component is manufactured using high-pressure die casting (HPDC) with an aluminum alloy optimized for fluid resistance and mechanical durability.

Key Details：

Testing Process

1.

Pressure Integrity Test

2.

• The oil pipe is secured in a clamping       fixture (as seen in Image 1).

• A hydraulic pressure system       applies controlled pressure via an orange-handled ball valve       and pressure gauge.

• The system checks for pressure       drop, indicating potential leaks.

3.

Leak Test (Sealing Verification)

4.

• A rectangular metal block       applies force to the pipe (Image 2).

• A yellow sealant or test fluid       is applied to detect micro-leaks.

• The pipe is inspected for fluid       seepage or air bubbles.

Results & Benefits

✅ Zero leaks detected under standard operating pressure.
✅ High structural integrity confirmed via pressure cycling.
✅ Efficient testing setup reduces inspection time compared to traditional methods.
✅ Cost-effective solution for mass production quality control.

Conclusion

This project demonstrates a reliable quality assurance process for aluminum die-cast oil pipes, ensuring leak-free performance in automotive or hydraulic systems. The combination of pressure and leak testing provides a fast, repeatable, and accurate method for verifying component durability in industrial applications.

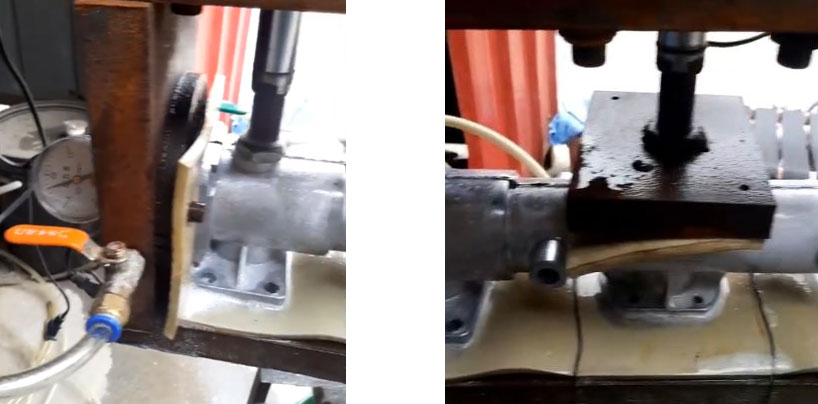

(Images: 1) Pressure test setup with hydraulic gauge & valve; 2) Leak test with sealing verification)

Note: This case study can be adapted for similar aluminum die-cast fluid transfer components. For custom alloy specifications or testing parameters, consult engineering data sheets.
